Stick Curtain Wall

WICTEC 50

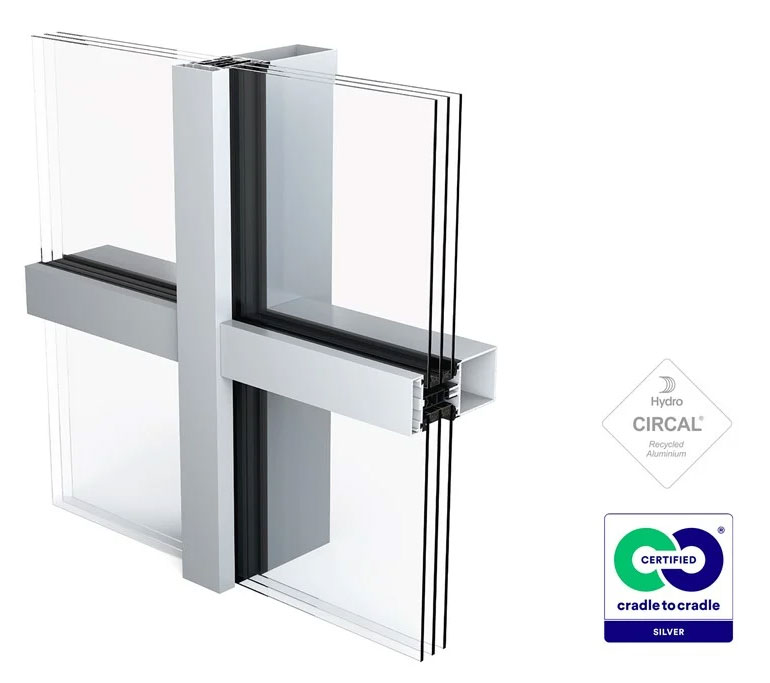

WICTEC 50 is the basic version of the stick curtain wall system, with an extra-narrow face width of 50 mm, inside and outside. The unique flexibility is demonstrated by the various system variants and enhancement options, all of which are feasible with minor additions to the base system and without compromising on appearance.

Technical Specifications

System technology

  • Ideal for vertical and polygon façades, sloped glazing and spatial structures
  • Individual design possibilities, thanks to a wide range of aesthetic profiles
  • Alternative: Industrial design for the appearance of steel profiles
  • Reliable glass load transfer (up to 6.0 kN), with improved transom-joint technology
  • Overlapping and secure drainage at the cruciform, without mechanical mullion processing, ensures tried-and-tested
    impermeability
  • Consistent internal gasket appearance
  • Wide selection of structural profiles, with optional integral reinforcements, ensuring optimal performance
  • External glazing, with visible or concealed fixings
  • Extensive solutions for framework junctions and conservatories



Additonal options in identical design and technical set-up

  • Passive house curtain wall (ift Rosenheim)
  • SG-design (integrated pressure profile)
  • Structural glazing curtain wall
  • Add-on curtain wall for steel and wood
  • Integrated sun protection
  • Fire protection curtain wall
  • Quick glazing
  • Straight cut
  • Heavy load system

Brochure System Data Sheets - EN

Air permeability

Class AE

Water tightness

RE 1200

Resistance to wind load

2000 / –3200 Pa, security 3000 / –4800 Pa

Sound insulation

Rw (C;Ctr) = 47 (–1; –4) dB

Impact resistance

Class E5 / I5

Burglar resistance

RC1N, RC2N, RC2, RC3

Bullet resistance

FB4

Quality assurance

Certified according to ISO 9001:2008

Environmental management

Certified according to ISO 14001

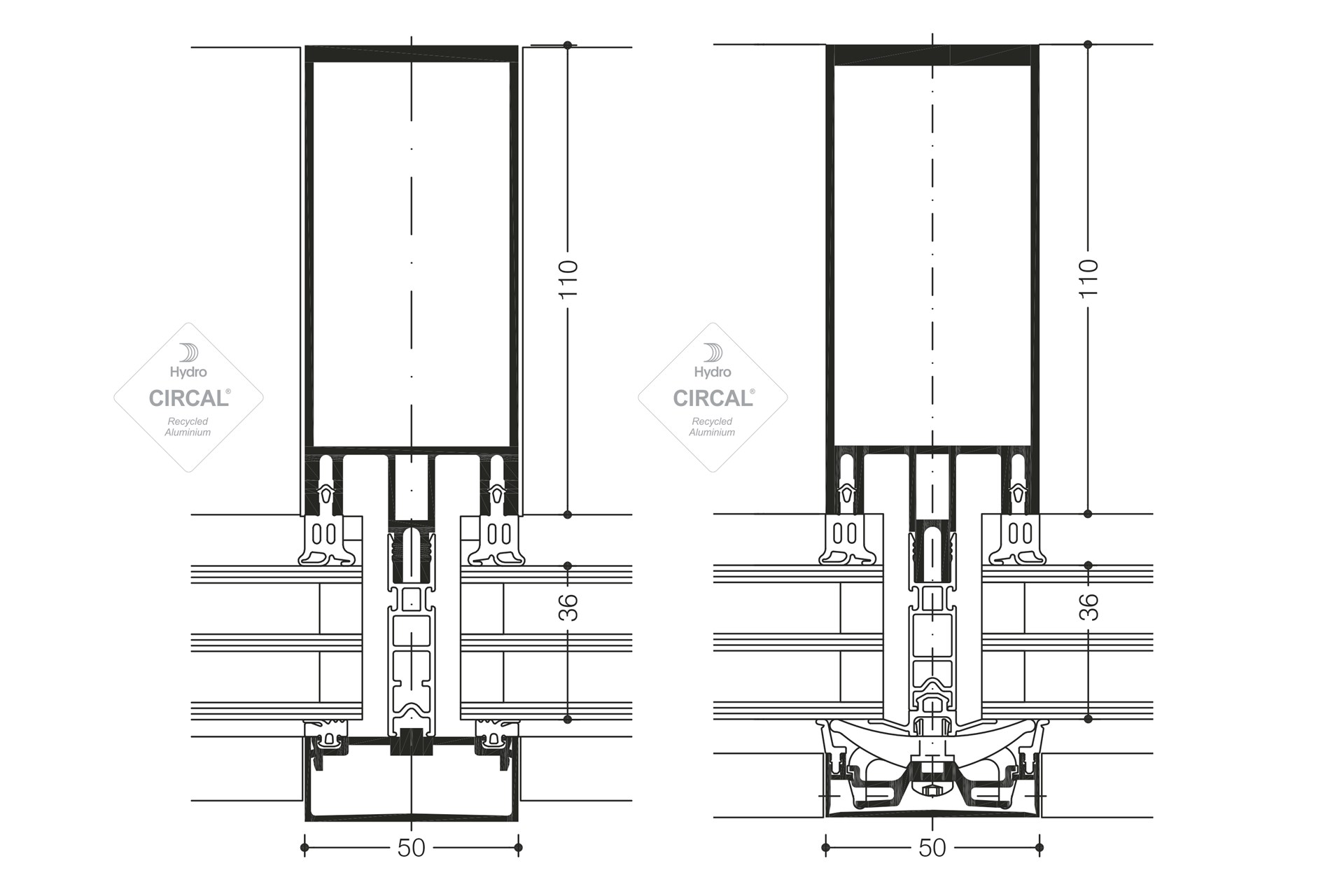

System width:

50 mm

Profile depth:

50 mm to 260 mm

Thermal insulation:

Uf value up to 0.65 W/(m²K)

Infill thickness:

3 mm to 63 mm

Glass weight:

up to 6.0 kN

Polygon façade:

up to ±45° (per side = 90° angle)

Roof pitch:

up to 10°
