Structural Glazing Curtain Wall

WICTEC 50 SG Structural Glazing

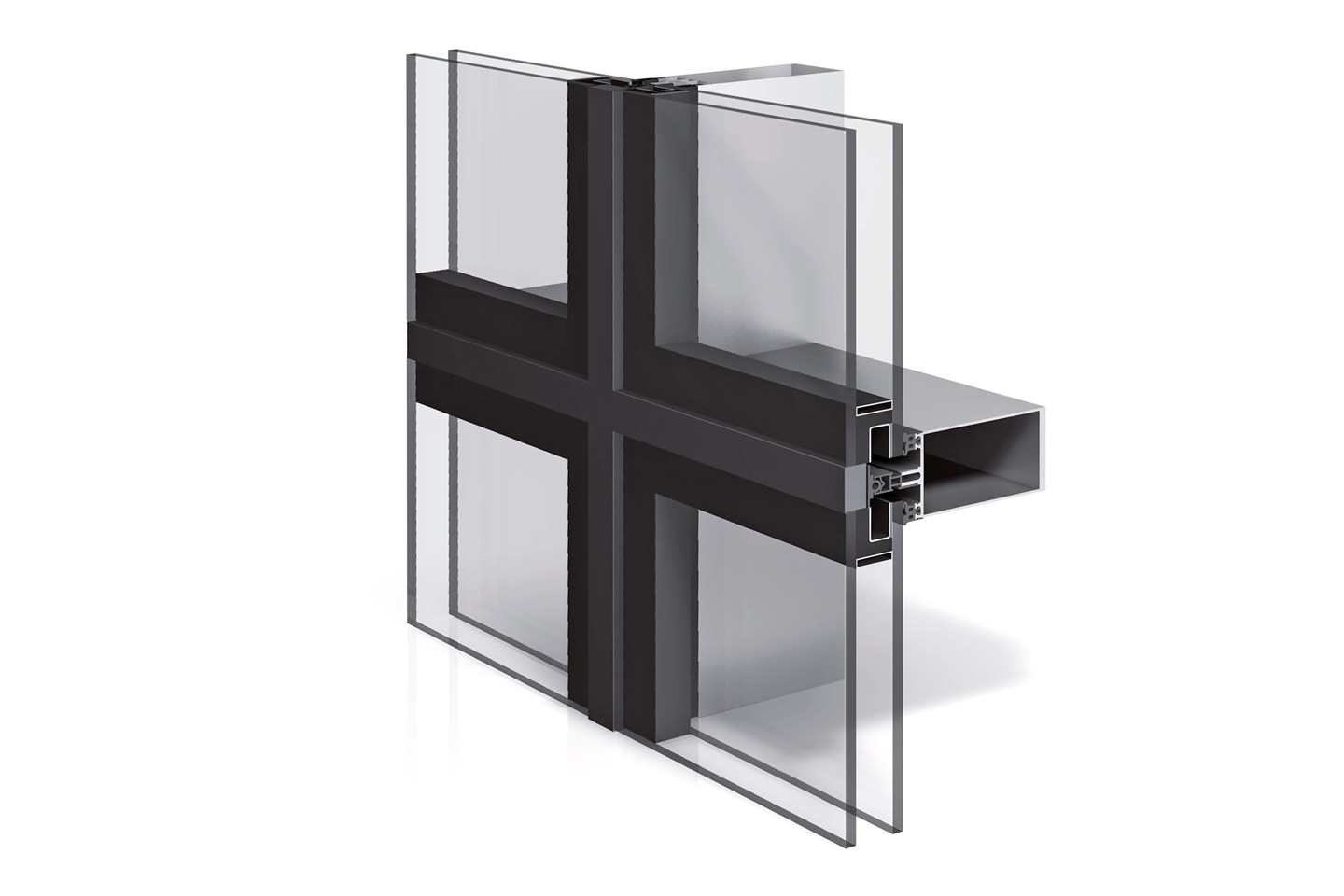

A characteristic feature of WICTEC 50 SG structural glazing curtain wall is the flush design with slim silicone joints between the glass panes. The system offers all-glass technology both for vertical curtain walls and sloped roof glazing. Based on the standard WICTEC 50 stick system these options can be realised with simplified and economic processing and assembly while assuring a high level of quality. The WICLINE 90 SG integrated opening sash complements the homogeneous full glass design with Italian style or parallel outward opening functionality.

Technical Specifications

Profile technology

  • ETA (European Technical Approval) granted
  • Outstanding appearance
  • Basic structure same as the WICTEC 50 curtain wall, with identical profile and gasket technology
  • Fast and simple installation of IGUs, thanks to a special patented fastener
  • Can also be combined with external cover profiles in various shapes and designs

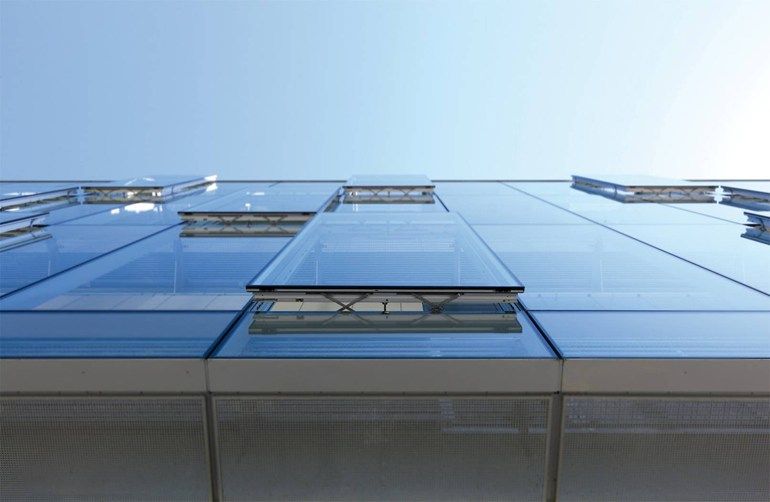

  • The ideal complement: WICLINE 90 SG all-glass integrated sash with Italian style or parallel outward opening
    functionality

Brochure System Data Sheets - EN

Air permeability

Class AE

Water tightness

RE 750

Resistance to wind load

2000 Pa, security ± 3000 Pa

Impact resistance

Class E5 / I5

Approval

ETA: 12/0551 (European Technical Approval)

Quality assurance

Certified according to ISO 9001:2008

Environmental management

Certified according to ISO 14001

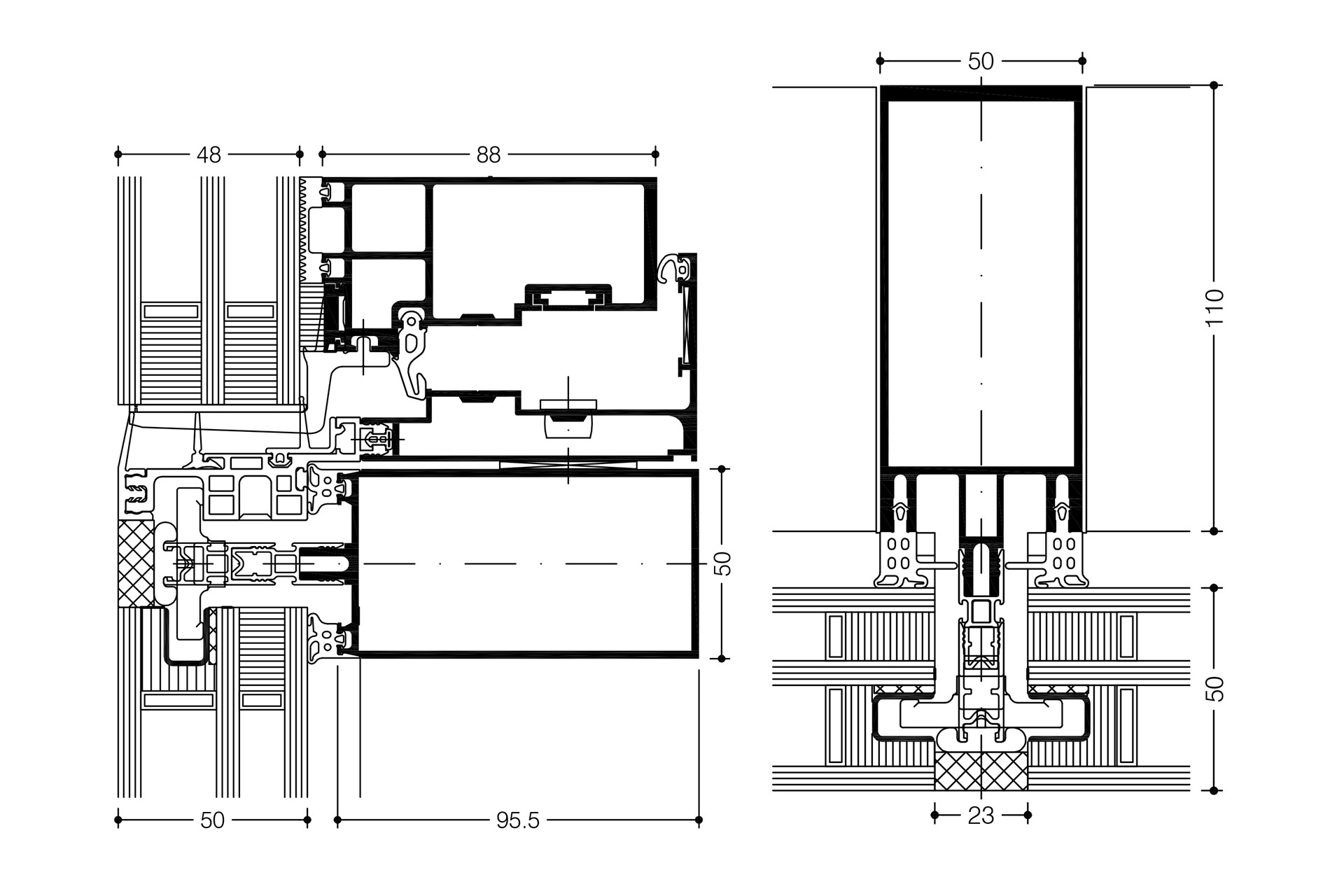

System width:

Internal aluminium profiles 50 mm / External silicone joint 23 mm

Thermal insulation

Uf up to 1.6 W/(m²K)

Infill thickness

up to 64 mm
