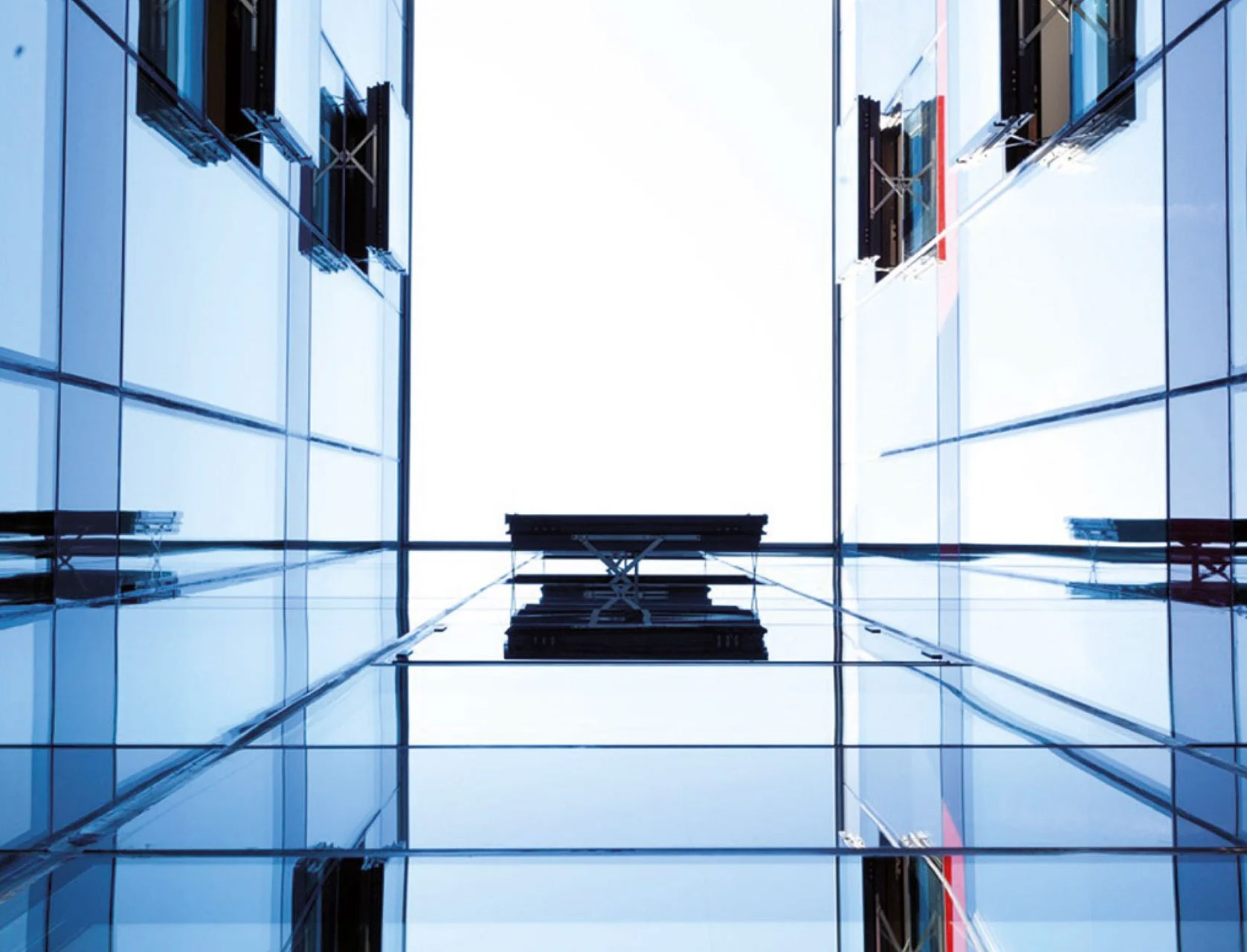

Curtain Wall with Maximum transparency

WICTEC 50 SG-Design

Reduced profile projections, creating maximum transparency: With its integrated pressure profile, the WICTEC 50 offers an inexpensive solution with a similar aesthetic to structural glazing. Available as a flush or low projecting installation, both solutions are a fast and easy extension of a classic stick curtain wall.

Technical Specifications

System technology

  • Minimal external sight-lines with 43 mm and 51 mm pressure profile widths
  • Two options: 4 mm pressure profile projection from the outer glass using traditional IGUs, or completely flush with the outer surface of the IGU by milling the edge of the glass

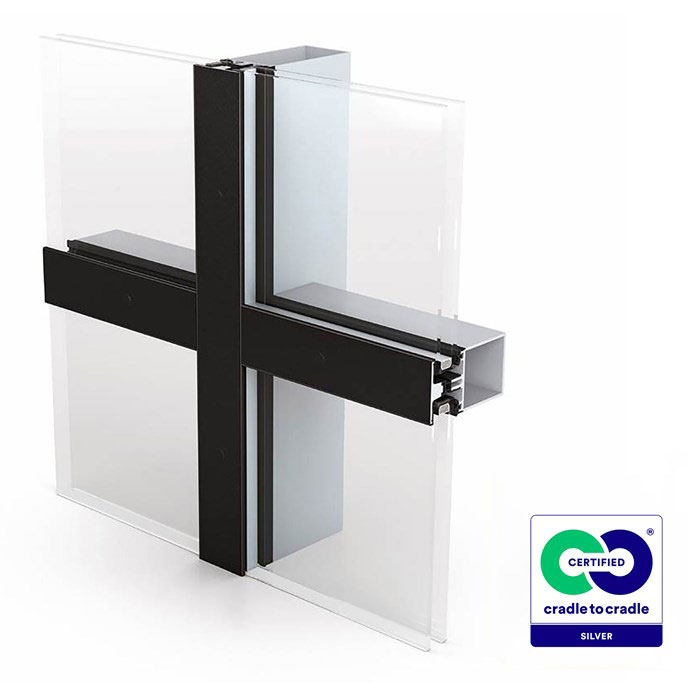

  • Standard stick curtain wall construction with similar external appearance to structural glazing
  • Replaces the silicone joint of a classic SG system, thus no bonding/sealing, no technical approval, consistent external visual quality and the possibility of using standard double or triple IGUs
  • Production and assembly the same as the standard WICTEC 50 curtain wall
  • Overlapping and secure drainage at the cruciform, without mechanical mullion processing, ensures tried-and-tested
    impermeability
  • Consistent internal gasket appearance
  • Wide selection of structural profiles, with optional integral reinforcements, ensuring optimal performance



Brochure System Data Sheets - EN

Air permeability

Class AE

Water tightness

RE 1200

Resistance to wind load

2000 / –3200 Pa, security 3000 / –4800 Pa

Impact resistance

Class E5 / I5

Burglar resistance

RC1N

Quality assurance

Certified according to ISO 9001:2008

Environmental management

Certified according to ISO 14001

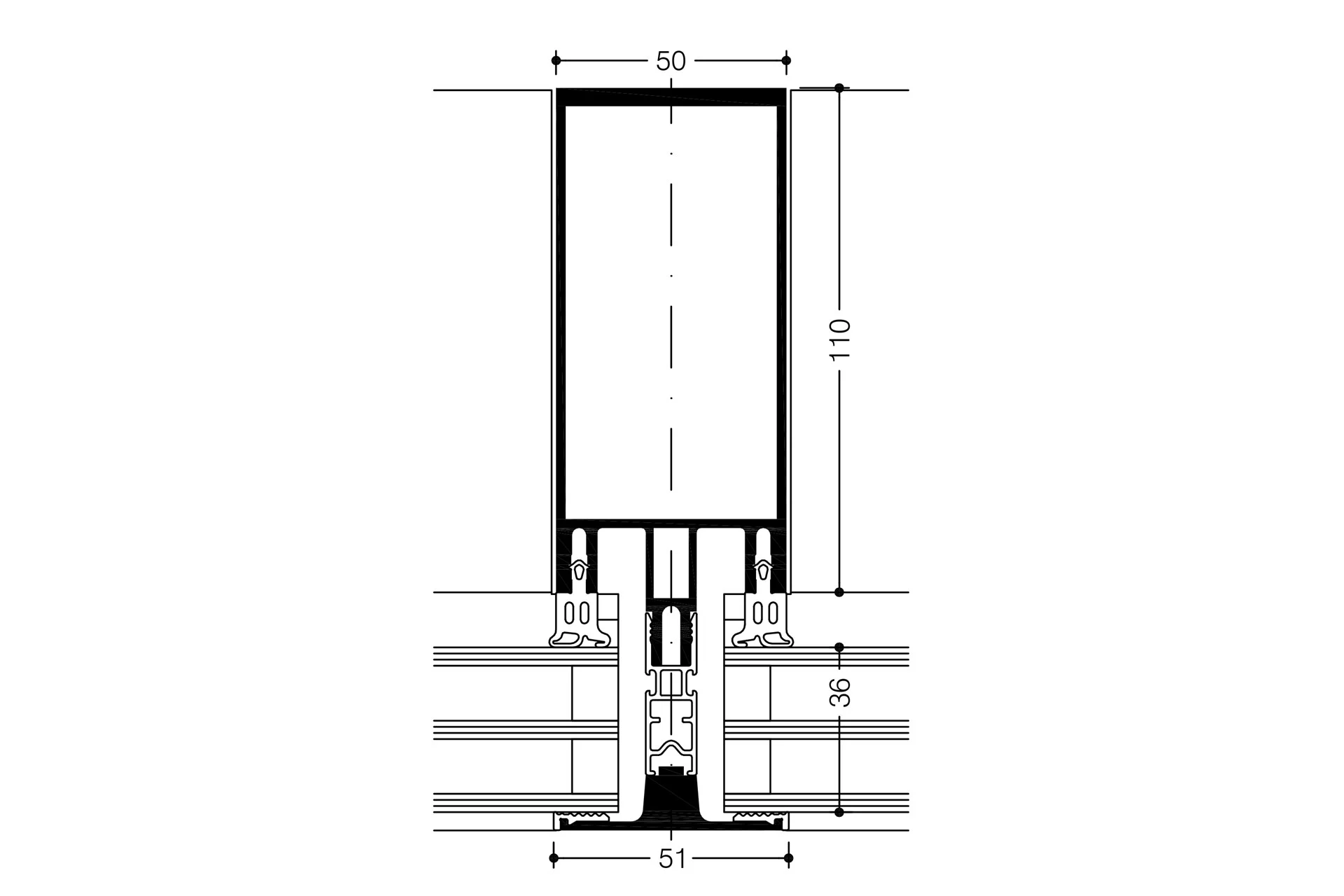

System width:

50 mm

External profile width

43 mm / 51 mm

Infill thickness

22 mm to 63 mm (traditional IGU) and 26 mm to 47 mm (milled IGU)

Basic system

WICTEC 50
