WICSTYLE 75 evo Classic design

WICSTYLE 75 evo Classic design

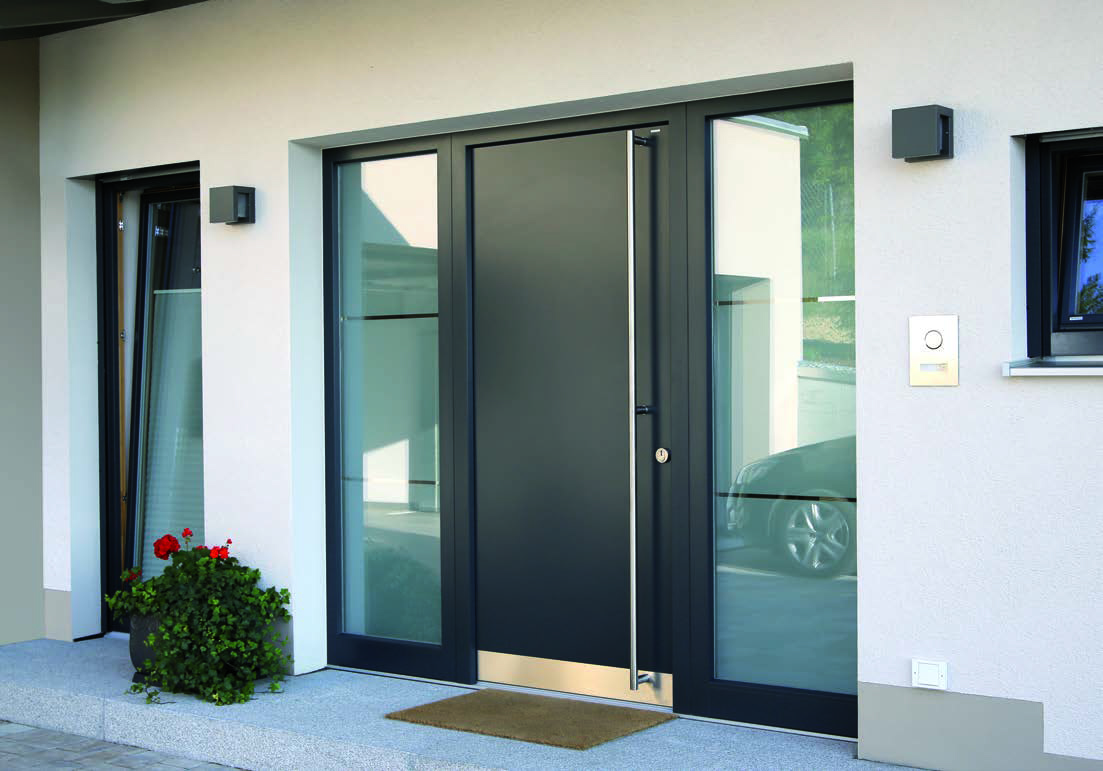

Bevelled profile contours and overlapping sashes are characteristic for the classic design of the WICSTYLE evo aluminium door series.This design underlines a style which is often requested for residential architecture. Ideal for new buildings and for energetic renovations alike.

Technical Specifications

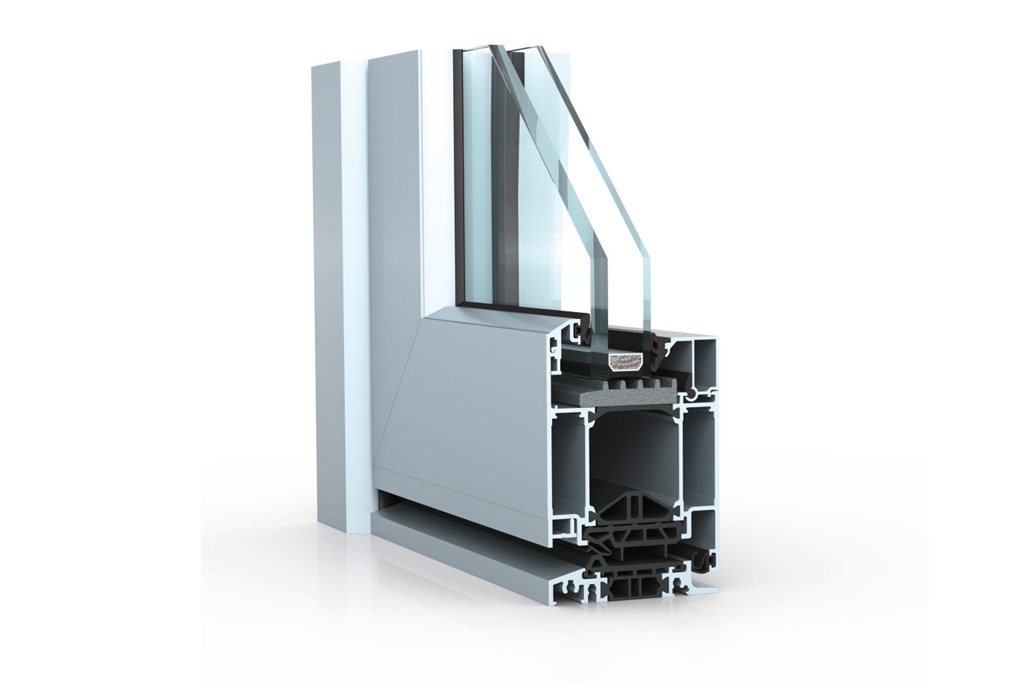

  • High insulation multi-chamber system, quality assured thermal insulator connection
  • For single and double leaf hinged doors
  • For inward and outward opening
  • For glass or panels with infill thickness from 3 mm to 76 mm
  • Various threshold profiles with or without thermal break, also barrier free
  • Fanlights, lateral glazings fixed or opening in combination with WICLINE evo window series

Thermal insulation

  •   Uf values: from 1.6 to 1.8 W/(m²K), without foam inserts

Hardware

  • Butt hinge
  • Screwed hinge
  • Concealed hinge
  • Leaf sizes (w x h): 1400 mm x 2520 mm  Max. leaf weight: until 200 kg

WICSTYLE Brochure - EN

Brochure System Data Sheets - EN

System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016

Air permeability

Up to class 4

Water tightness

Up to 7A

Resistance to wind load

Class C2

Acoustic Performance

W (C; Ctr) until 43 (–1; –4) dB

Operating forces

Class 2

Load bearing capacity of safety devices

Fulfilled

Mechanical strength

Class 3

Repeated opening / closing

Up to class 7 (500 000 cycles)

Impact resistance

Class 1

Behaviour between different climates

Up to class 2(e) 2(d)

Burglar resistance

RC1N, RC2N, RC2, RC3

Quality assurance

Certified according to ISO 9001:2008

Environmental management

Certified according to ISO 14001

  • Double action doors
  • Integration frame for stick façades
  • Burglar resistance in classes RC1 to RC3
