WICLINE 75 FP

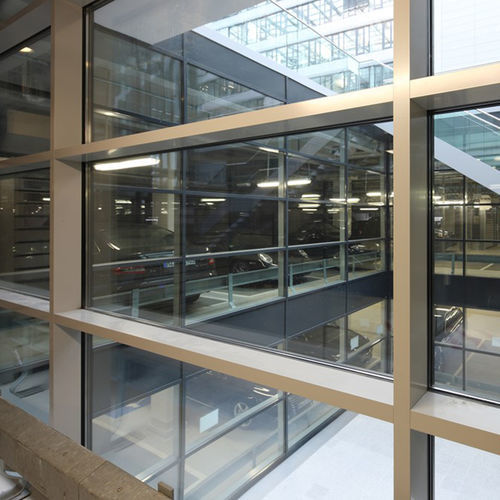

With the new WICLINE 75 FP fire protection window series, the WICONA fire protection programme is completed. The construction is 100 % based on a WICLINE 75 standard design and cannot be visually differentiated from this design. The self-closing openable fire protection glazing can be implemented as punch windows, windows with surrounds or integrated in a WICTEC 50 FP fire protection stick curtain wall.

Technical Specifications

Profile technology

  • CE marking according to DIN EN 16034 EI2 30-C2Sa
  • Execution in fire protection classes EI30 or EW30
  • Patented corner and butt joint connection technology for high rigidity of frames and sashes
  • Infill thickness up to 49 mm
  • Optionally with integration frame for stick curtain walls WICTEC 50 FP



Thermal insulation

  • Uf values: up to 1.3 W/(m²K)



Hardware

  • Heavy duty system fittings, with concealed hinges, integrated end position damping, opening angle max. 105°
  • Sash weight:
    • Up to 160 kg
  • Sash sizes (w x h): 1300 mm x 2300 mm
