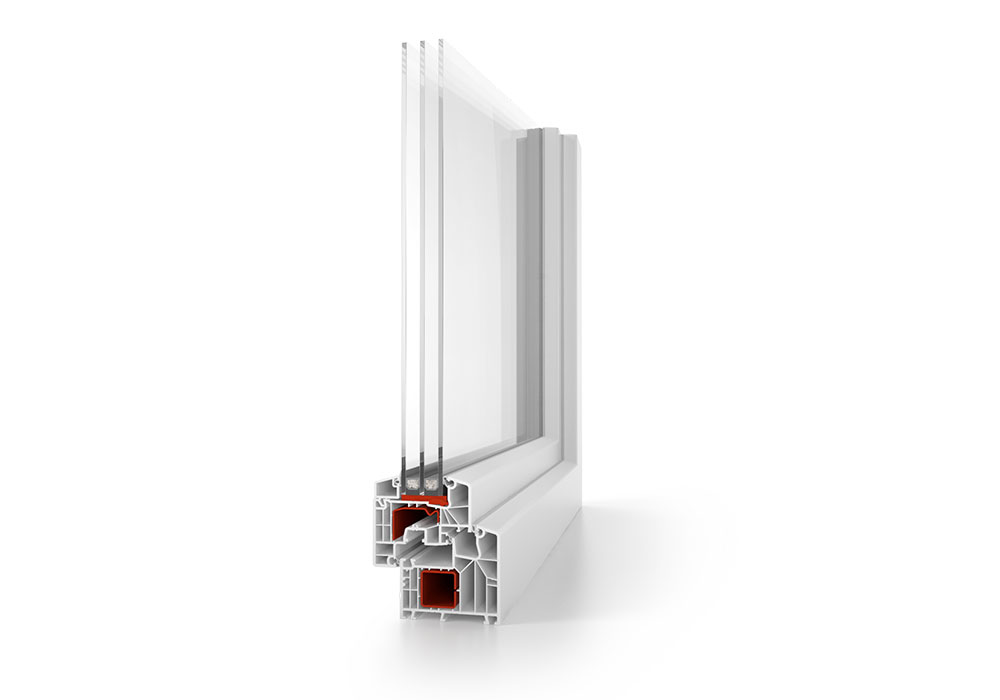

IDEAL 8000

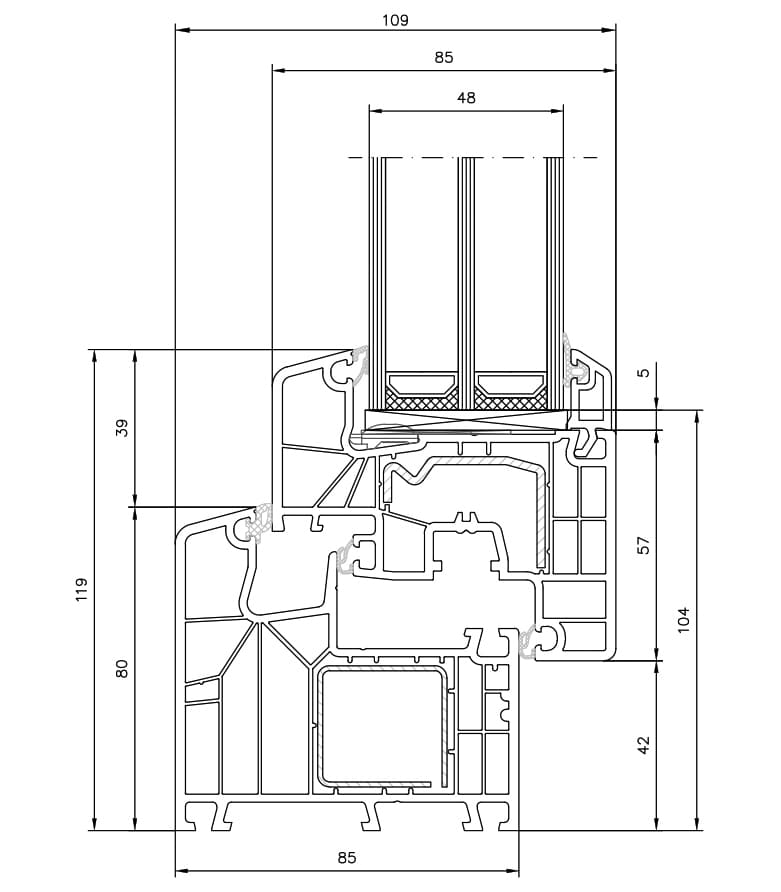

85 mm construction depth
Excellent insulation values and added safety make this system ideal for new buildings.

Technical Specifications

  • Construction / installation depth: 85 mm
  • Number of chambers: 6
  • Uf (frame thermal transmittance): 1.0 W/m²K
  • Uw with standard triple glazing (Ug = 0.6, Psi = 0.040): 0.83 W/m²K
  • Best possible Uw (with high-performance glazing, Ug = 0.4, Psi = 0.030): 0.67 W/m²K
  • Maximum glazing / glass unit thickness: up to 51 mm
  • Sound insulation: up to 48 dB
  • Burglar / security resistance: up to RC3
  • Sealing / gasket system: triple-seal / “third gasket” / Safetec inside (central gasket system
