IDEAL 7000®
85 mm construction depth
A reliable choice for new buildings: The tried-and-tested IDEAL 7000 ensures a high-quality standard of living and impressive energy efficiency.
Technical Specifications

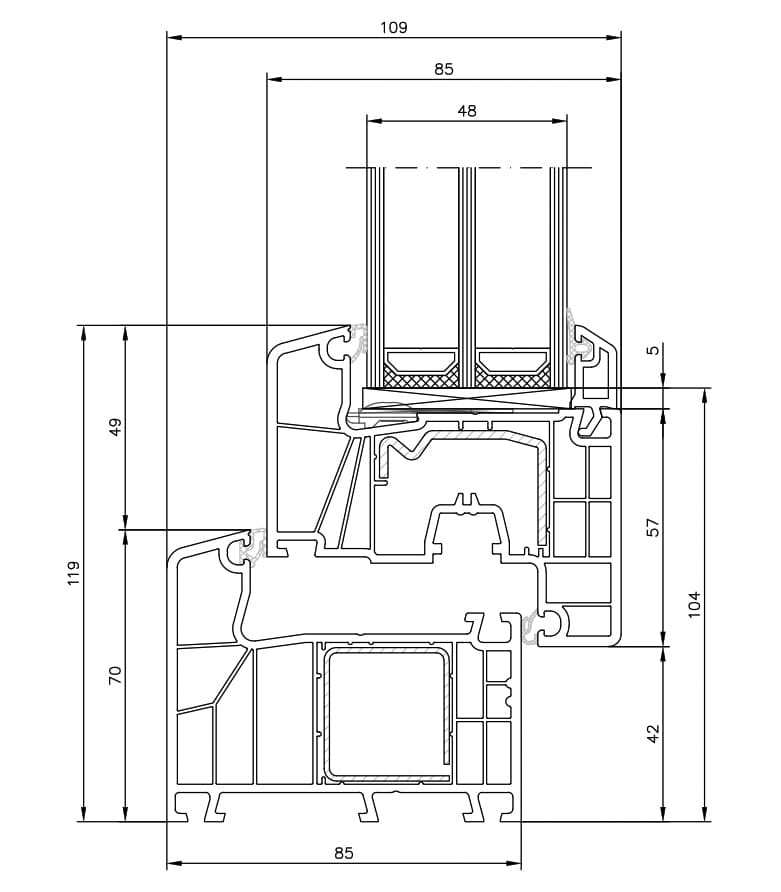

Construction / installation depth: 85 mm
Number of chambers: 6
Uf (frame thermal transmittance): ~ 1.1 W/m²K
Uw (window thermal transmittance) with standard triple glazing (Ug = 0.6, Psi = 0.040): 0.86 W/m²K
Best possible Uw (with high-performance glazing, Ug = 0.4, Psi = 0.030): 0.70 W/m²K
Maximum glazing / glass unit thickness: 51 mm
Sound insulation: up to 46 dB
Burglar / security resistance: up to RC2 (optional)
