EBE 75

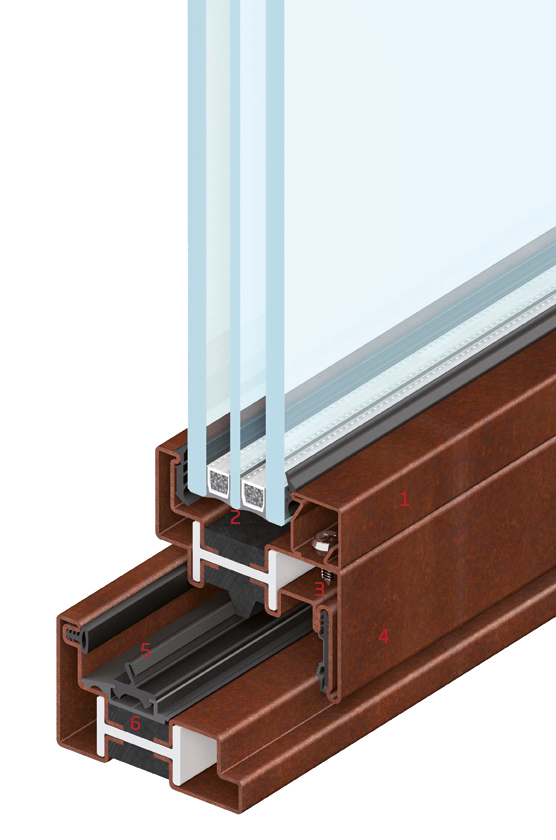

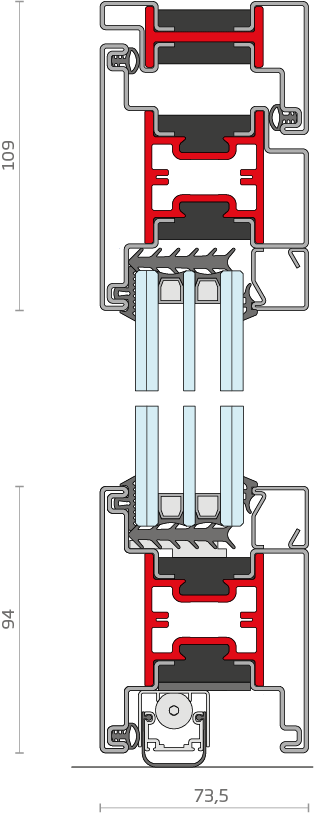

The profiles of the thermal break system EBE 75 have a depth of 75 mm and can hold insulating glazing panels of up to 48 mm. The sashes and frames are coplanar both externally and internally

Technical Specifications

  • System depth: 75 mm
  • Maximum glazing thickness: up to 48 mm
  • Frame / sash alignment: coplanar both externally and internally
  • Sealing / gasket system: frame includes a weep system with triple gaskets


Certified performance (Tilt & Turn variant):

  • Air permeability: Class 4
  • Water tightness: 9A
  •  Wind load resistance: C5
  •  Thermal transmittance Uw: ~ 1.27 W/m²K
  •  Burglar resistance: RC3
